Vented Screw

HUACHEN Screw has been a leading Vented Screw manufacturer in Zhoushan Jintang since 2005. With many years of experience in the design and processing of plastic machinery accessories, HUACHEN Screw can provide its customers with a wide range of services, including screw barrel design, rebuilding, modification, and upgrade. Our company has also successfully exported and supplied screw barrels to customers worldwide.

>> Learn More About Our Company

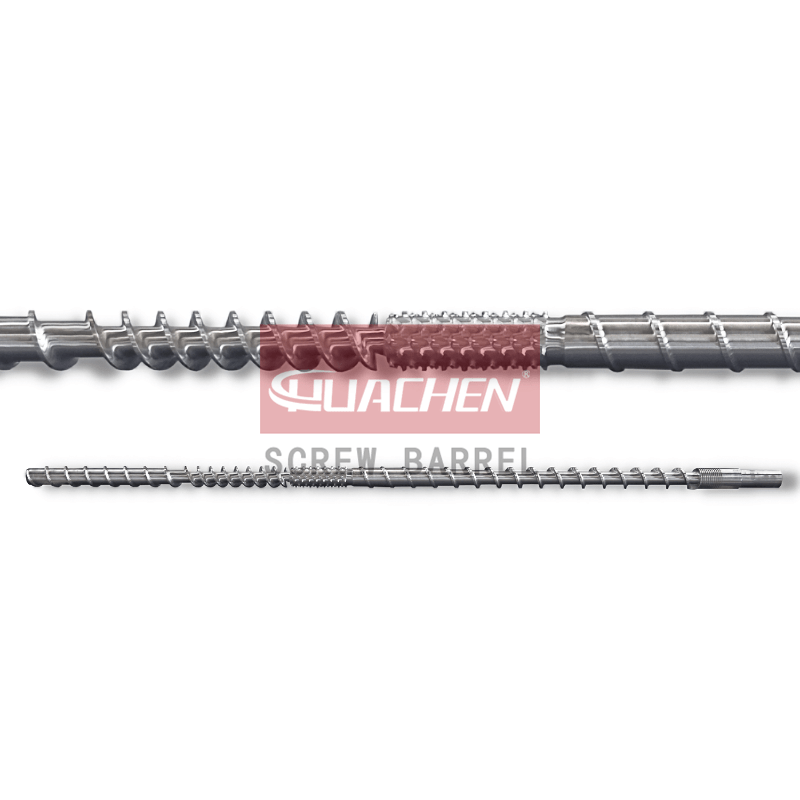

Vented Screw

The vented screw is a key component of the vented extruder. The vented extruder is suitable for processing plastic granules or powders with volatile substances. Vented extruders eliminate the drying process and improve product quality.

The structure of a vented screw consists of two conventional screws attached to a vent section structure with venting capabilities. The extruded material needs to be plasticised by the first stage screw, then vented by the vent section, then plasticised and extruded by the second stage screw. Since it has a longer length to diameter ratio than a normal screw, it usually has an L/D ratio of 24 or more, and a maximum of 43. With a large L/D ratio, the screw speed can be increased, so the machine can produce more.

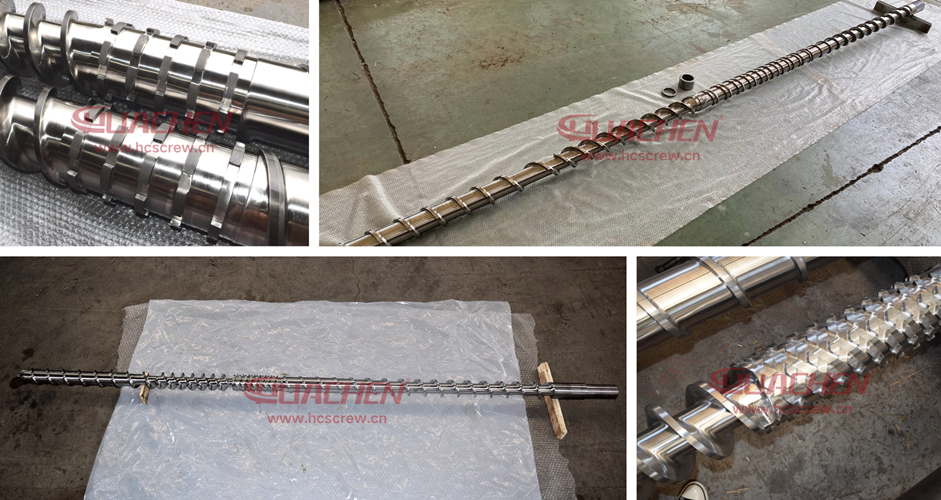

HUACHEN vented screws are available in a variety of shapes and sizes, including single vented screws, double vented screws, and two-stage vented screws.

>> Learn more about PE PP Recycling Pelletizing Bimetallic Venting Single Screw Barrel

Advantages of HUACHEN Vented Screw

In vented extruders, there are usually two problems, one is fluctuating output, the other is clogging of the vented port, which causes bubbling material. By improving mixing and shearing functions, HUACHEN Screw can provide highly efficient Vented Screws that effectively solve the problem of bubbling material during use. As a result, you will be able to achieve better plasticizing results and save energy in the long run. At the same time, it achieves high extrusion efficiency and reduces rejects.

For the processing of recycled materials, we provide an extensive range of anticorrosion and wear-resistant screw technologies. The vented screws we manufacture are compatible with a wide range of vented extruders. If you would like more information about vented screws, please do not hesitate to contact us.

Application of Vented Screw

1. Pelletizing rigid plastics, such as PP, PE, ABS, PS, PC, PMMA, and PVC.

2. Pelletizing of PA6, PA66 non-wovens, non-woven trimmings, PP non-wovens, and other soft plastics

3. Recycling of PE, PP, woven bags, etc.

4. Dry granulation of wet material after extrusion.

5. PET sheets, PC sheets, PP sheets, PE sheets, ABS sheets, etc.

The venting function is also available on other screws

1. Parallel twin screws for extruders

2. Conical twin screws for extruders

3. Venting injection moulding screw.

Vented Screw Specifications

1.Single screw diameter available: 45mm to 200 mm

2. Single screw L/D ratio available: 24 to 43

3. Barrel max. length: ≤10000 mm

4. Barrel max. out diameter: ≤350 mm

5. Based materials: Premium 38CrMoAlA (UNS K24065, SACM645, 41CrAlMo7-10)

6. Plasma nitriding surface hardness: HV 1000-1100

7. Plasma nitriding depth: ≥ 0.7 mm

8. Nitriding fragility: less than Grade I.

9. Surface Roughness: Ra 0.4 μm

10. Screw Linearity: ≤ 0.015mm

11. Alloy depth: 2-4 mm

12. Alloy surface hardness: ≥ HRC 61

>> Learn more about our vented screw parameters

Production time:

Within 30-38 days depending on the complexity of the part.

We have a wide selection at good prices to help you get creative. The vented extruder screw for sale is guaranteed to be of high quality. We are the China Origin Factory of vented screw. If you have any questions, please feel free to contact us.
