PVC Composite Faux Stone Wall Panel Conical Twin Screw Barrel
● PVC, mixed or recycled materials
● panel, sheet, board, plank
● Filler ratio of 200-300%, and greater than 300%.
● Min. Order (MOQ): 2 conical screws + 1 barrel
● Based material: Premium 38CrMoAlA tempered and nitrided, SKD11
● Anti-wear solution: SKD sleeve fitted barrel + bimetallic screw, bimetallic barrel + bimetallic screw, chrome coating screw, ceramic alloy screw
You Need Better Conical Twin Screw Barrel at Good Price!
- Product Detail
PVC composite faux stone wall panel is popular for interior decorating. It’s a new type of composite material that’s made by melting PVC resin with high-quality stone powder and adding auxiliaries at high temperatures and then extruding it with PVC film. PVC composite faux stone wall panel is similar to natural marble and granite in appearance and features. As well as being flexible, it’s also anti-wear and bend-resistant. Due to their calcium content and high plasticisation performance, composite faux stone wall panels require special screw and barrel designs and the highest level of anti-wear solutions.

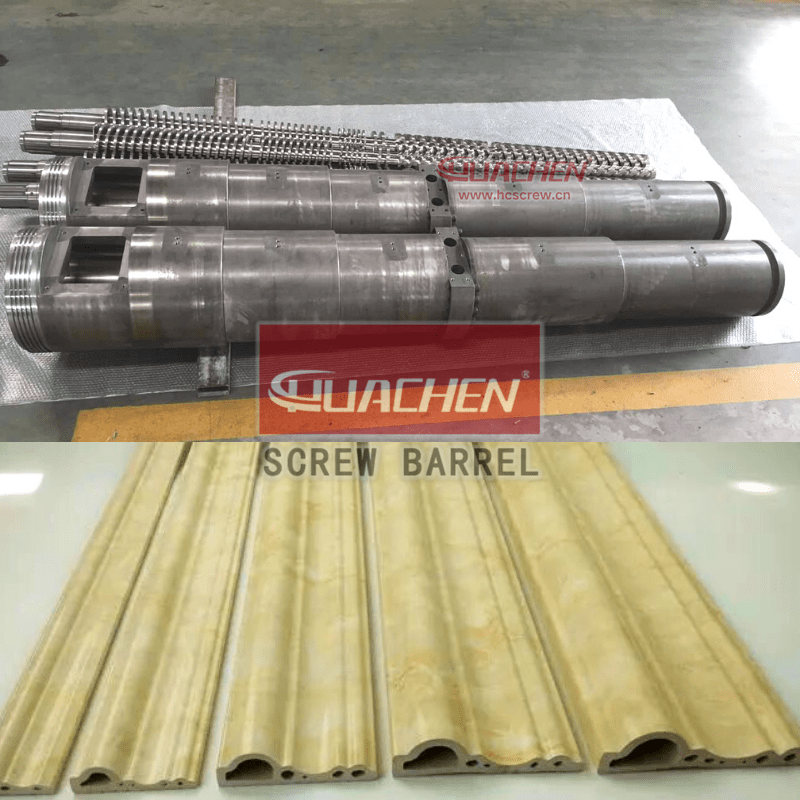

PVC composite faux stone wall panel sheet extruder conical twin screw barrel
1. PVC composite faux stone wall panels have a high calcium powder fill ratio and poor material flow. The special conical twin screw has low shear, high mixing, and high conveying. It helps the faux stone wall panels look better by fully plasticizing and melting at a low temperature.
2. Stable extrusion and better feeding. This screw is designed with extended feed and stop sections based on flow dynamics to make it easier for the extruder to feed and extrude thick PVC composite faux stone wall panel, and it can also be laminated in-line for continuous production.
3. Optimized screw and barrel design reduces production costs and accommodates varying processes and formulations of faux stone wall panels.
4. The screws and barrel are made of high quality alloy steel 38CrMoAlA as the base material, which is tempered and nitrided. They’re all CNC milled on large scale high precision machines. Each set of screws and barrels has a high degree of consistency in extrusion. A smooth surface and no gaps prevent material from accumulating on the screw and barrel.
5. The top surfaces of the screw flights, which are prone to wear, get a bimetallic alloy process and ceramic tungsten coating to extend their life. The barrel is fitted with a replaceable SKD sleeve fitted barrel. SKD sleeves are vacuum hardened and then secondary nitrided for extra wear resistance. You can replace the SKD sleeve with a new barrel assembly when it wears out.
Application
PVC composite profile making, PVC composite panel making, PVC composite sheet, and board making;
PVC faux stone wall panels making extruder, PVC faux stone siding making, PVC faux stone sheet making.
Manufacture of PVC composite panel sheet extruder conical twin screw barrel
| Model | Speed (RPM) | Motor (KW) | Capacity (kg/h) | Screw length (mm) | Barrel length (mm) | Weight (kg) | Package dimension (m) |
|---|---|---|---|---|---|---|---|
| HCZS80/156 | 75 | 55 | 450 | 2116 | 1850 | 775 | 2.2*0.4*0.5 |
| HCZS92/188 | 34.7 | 110 | 750 | 2805 | 2520 | 1500 | 3.0*0.5*0.6 |
>> Screws and barrels are standard sizes for easy installation. Depending on the raw materials and production processes in different regions, the conical twin screw barrel can be fine-tuned. Get more info about our specs by contacting us.
Parameters
1) Material: Premium 38CrMoAlA, UNS K24065, SACM645, 41CrAlMo7-10, SKD11. 2) Plasma nitriding layer: 0.70 mm. 3) Nitriding time: more than 120 hours. 4) Nitriding surface hardness: ≥HV1000. 5) Nitriding Brittleness: Less than Grade 1. 6) Surface Roughness: Ra 0.4μm. 7) Screw Linearity: ≤0.015 mm. 8) Alloy surface hardness: HRC≥61. 9) Alloy deepness: 1.5 mm. 10) SKD sleeve surface hardness: HRC≥62. 11) SKD sleeve thickness: 6-10mm
>>Learn more about our PVC composite panel sheet conical twin screw barrel parameters
The ultimate solution for abrasion and wear
-Level 4, SKD sleeve fitted barrel and ceramic alloy coating screws;
-Level 3, SKD sleeve fitted barrel and hard chrome coating screws;
-Level 2, SKD sleeve fitted barrel and bimetallic screws;
-Level 1, bimetallic barrel and bimetallic screws;
Production time
Stork model in 7 days. Peak season lead time within 45 days, and off season lead time within 33 days depending on the complexity of the part.
HUACHEN Screw has been a leading conical twin screw barrel manufacturer in Zhoushan Jintang since 1993. Our services include drawing rebuilding, design, modification, and customized screw barrels. Besides manufacturing screw barrels, we export them all over the world. It is the China origin factory of PVC composite faux stone wall panels sheet extruder conical twin screw barrel. If you have any questions, please feel free to contact us.
